Components
Scalable Modeling uses the following components to model scalable systems.
- Components
- Bounded Contexts
- Events
- Ubiquitous Language
- Commands and State
- Queries
- Policies
- Hotspots and Descriptions
- Consistency Boundaries
Bounded Contexts
Bounded context can be thought as one service in a larger system. It defines a clear boundary around a specific part of the domain where particular terms, rules, and models are valid. It helps avoid ambiguity by isolating concepts and ensuring they only apply within that boundary. Think of it as a focused "space" where a specific language and logic make sense, independent of others.

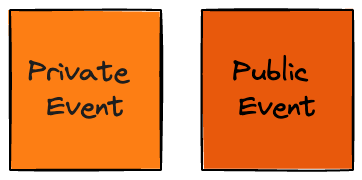

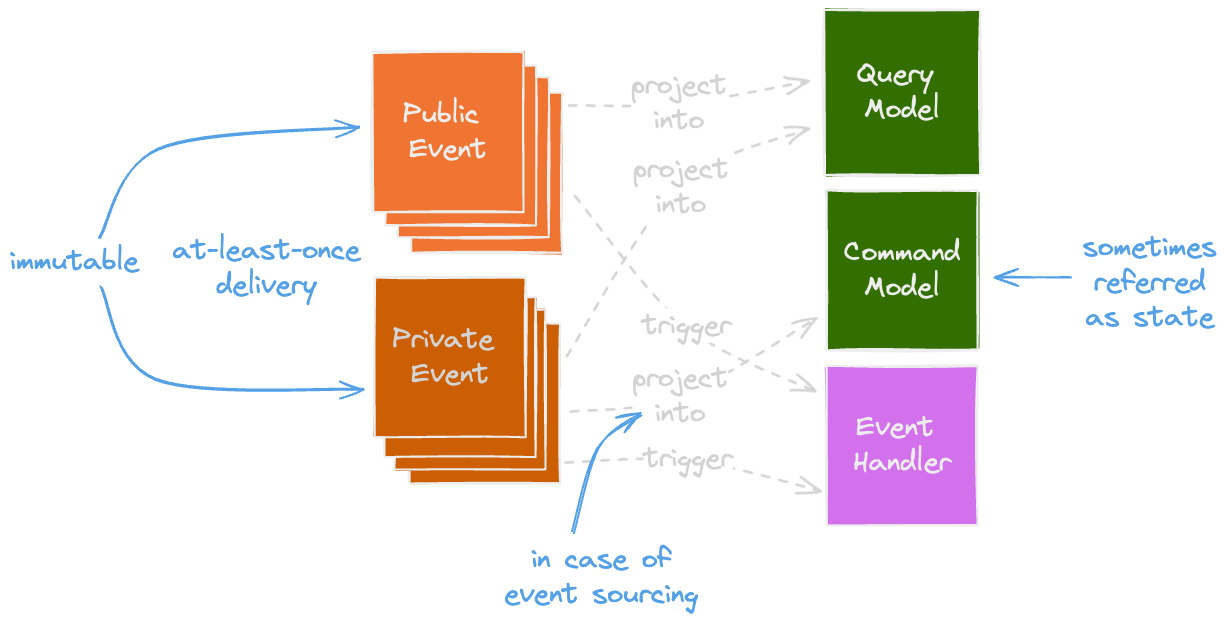

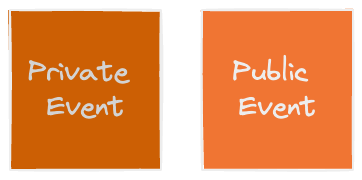

Events
Events are immutable, enabling duplication which helps in distribution and scalability. - Private Events are specific to the bounded context. - Public Events are shared externally.
Ubiquitous Language

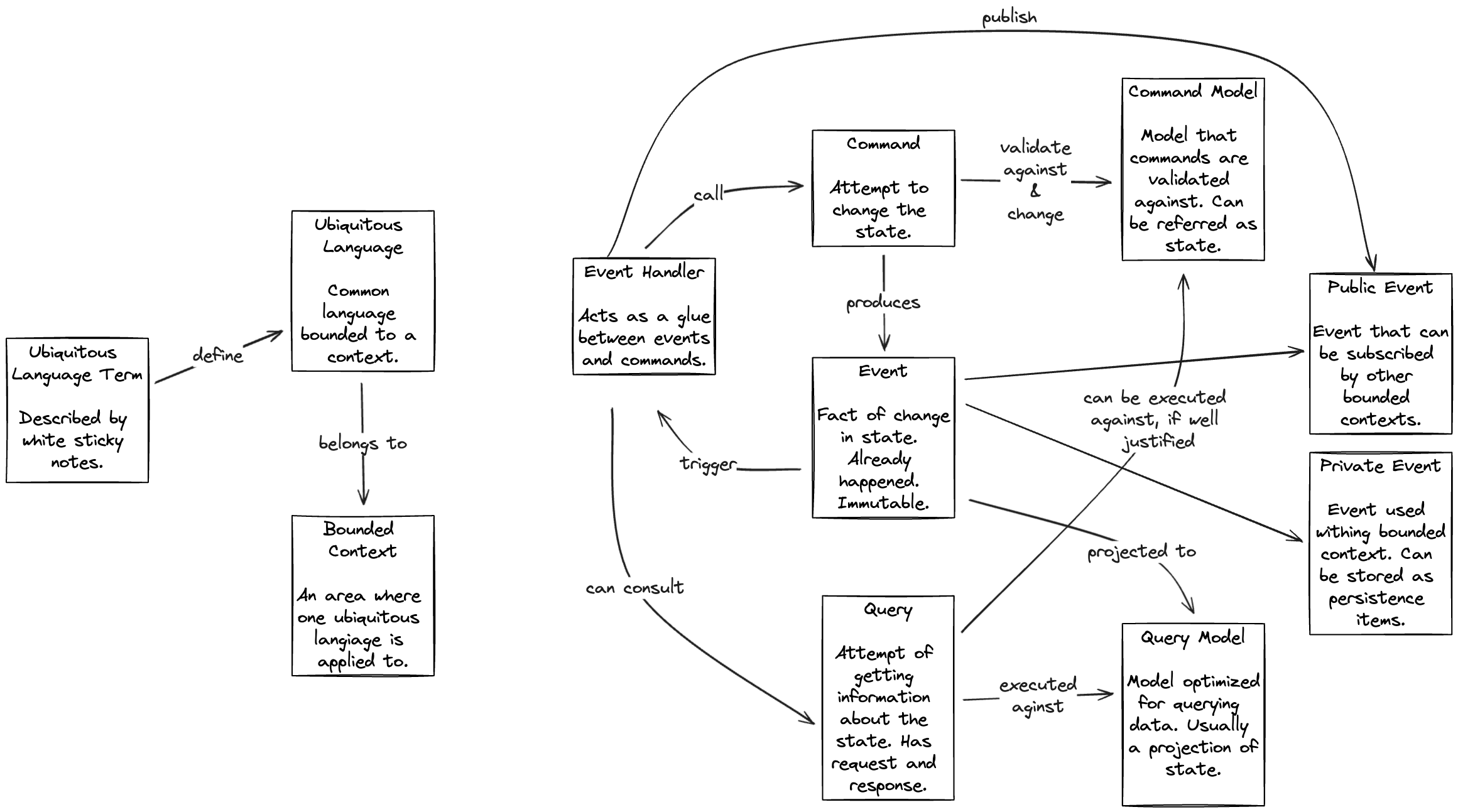

Ubiquitous language is more than connections and stickies in the picture above. At best, it is a shared conceptual framework that allows both technical and non-technical stakeholders to collaborate effectively, ensuring that all parties have a common understanding of the domain and its logic. It helps avoid ambiguity, enabling precise communication and design decisions, fostering a deep connection between the code and the business model it represents.
This language allows everyone involved to speak the same language, preventing misunderstandings and ensuring that the system's design remains consistent with the business goals and domain requirements.

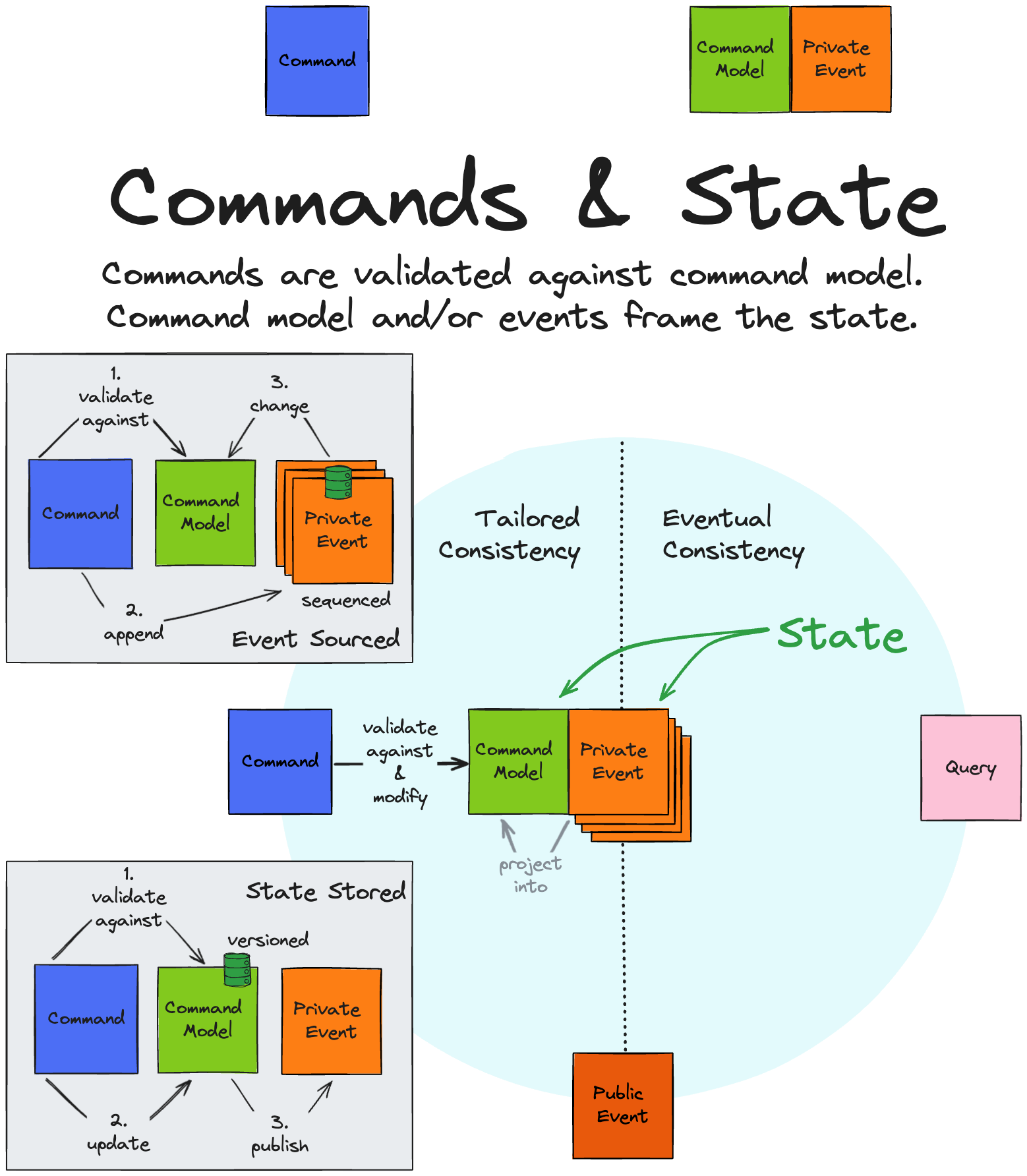

Commands and State
Commands are validated against a model that frames the state. The model defines the logic, rules and structure of the state, which is persisted through events or direct updates. Commands modify the state by adhering to the rules defined by the model, ensuring business invariants are maintained.

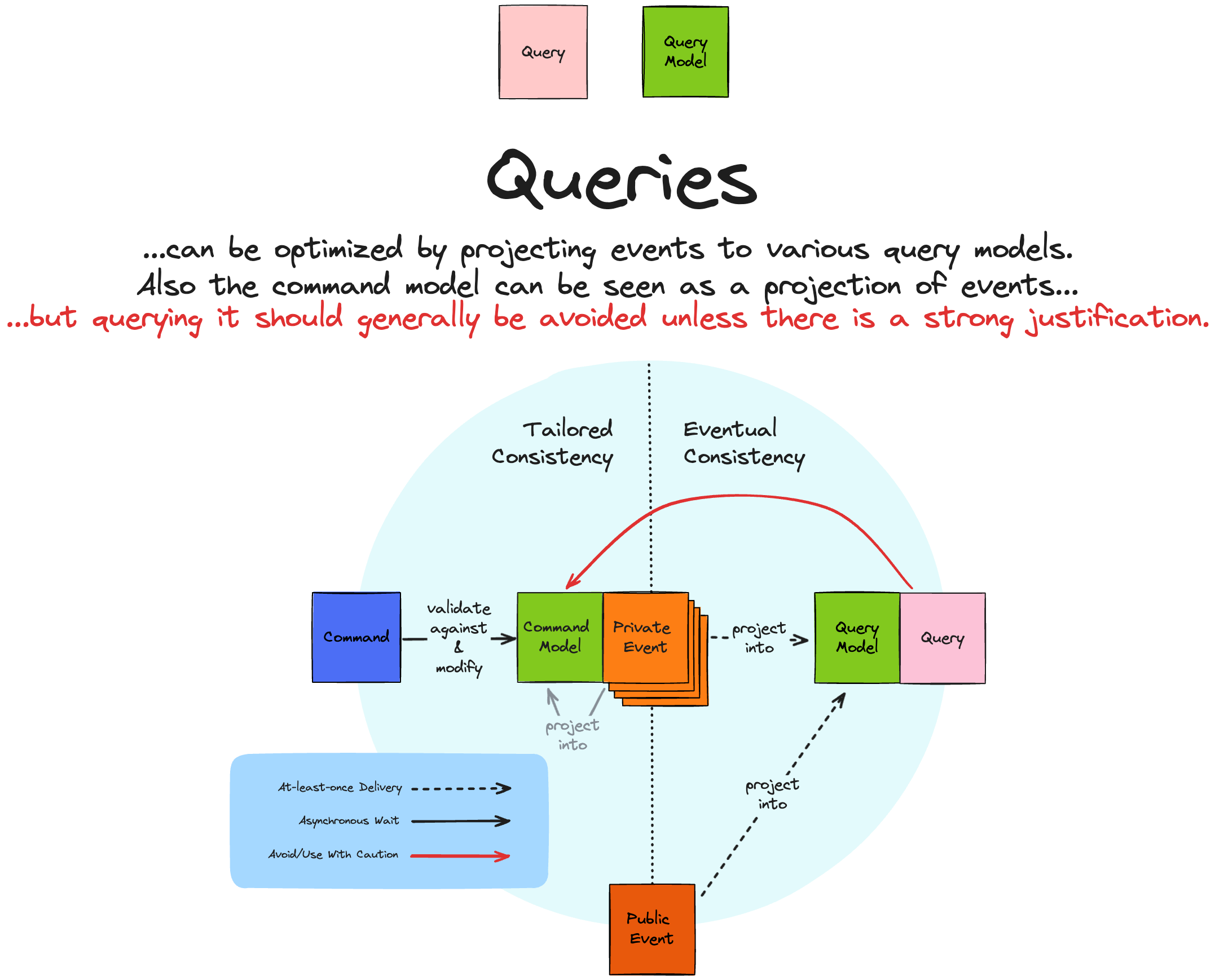

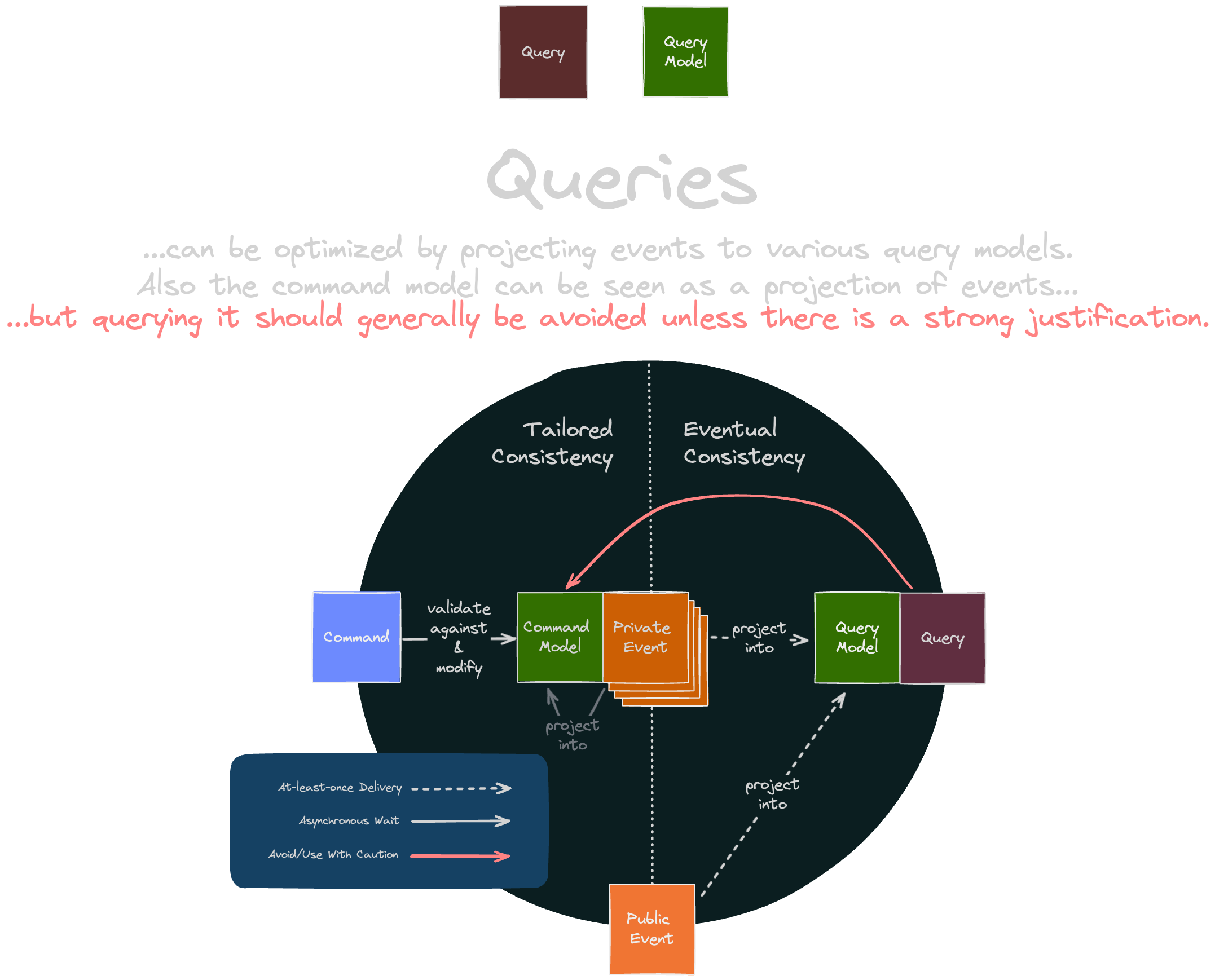

Queries
Querying the Command Model (illustrated by the red arrow in the picture above) is a topic that often generates strong opinions. In essence, the command model is a specialized type of model designed to validate commands. While it is not intended for querying, there are certain scenarios where reading from it may be justified.
For example, in in-memory command models (such as Akka-style), where the model is clustered, a valid use case might involve querying the state of an entity immediately after its creation or update. Since the entity resides in memory, fetching its state quickly can be reasonable and efficient.
Additionally, immutable streams of private events allow for the projection of new query models at any point in a system's lifecycle. This enables model separation to be implemented on-demand, as needed.
That said, querying the command model can easily lead to misuse, such as performance bottlenecks or data inconsistencies. Therefore, as a general rule, it's best to maintain model separation and use the command model for queries only when there is a clear, well-justified benefit.

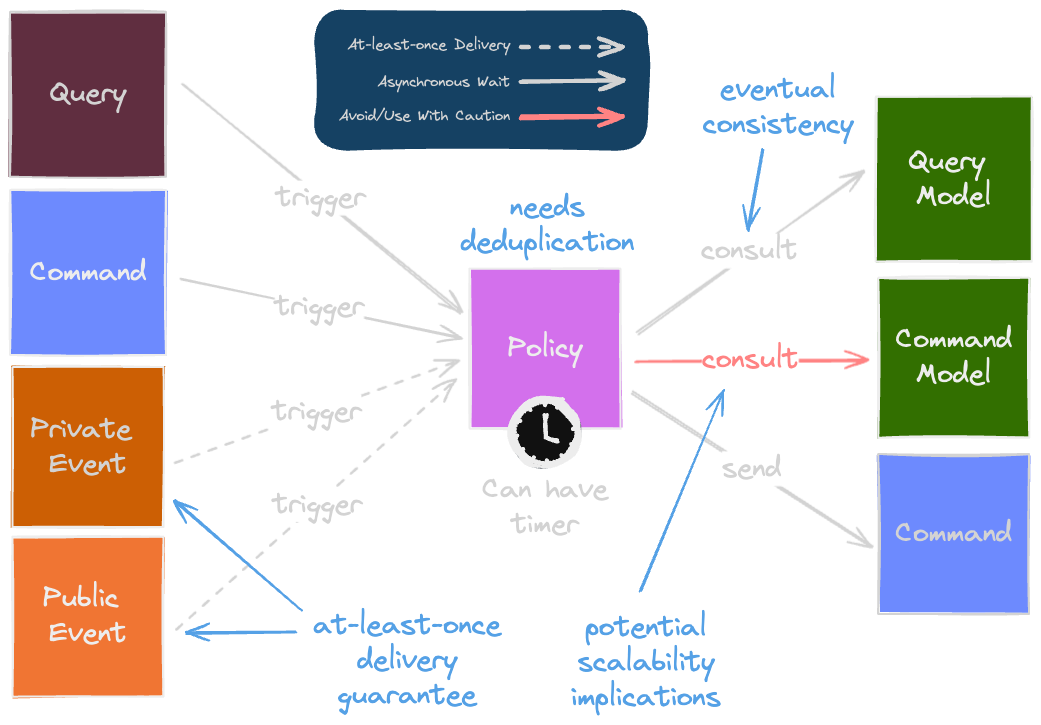

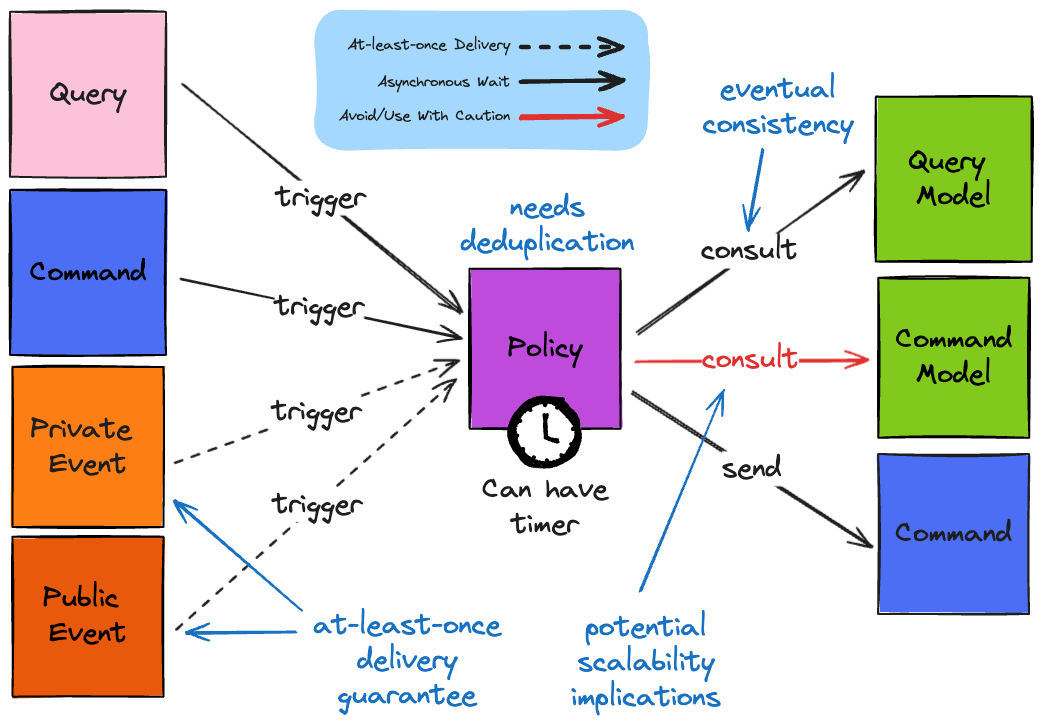

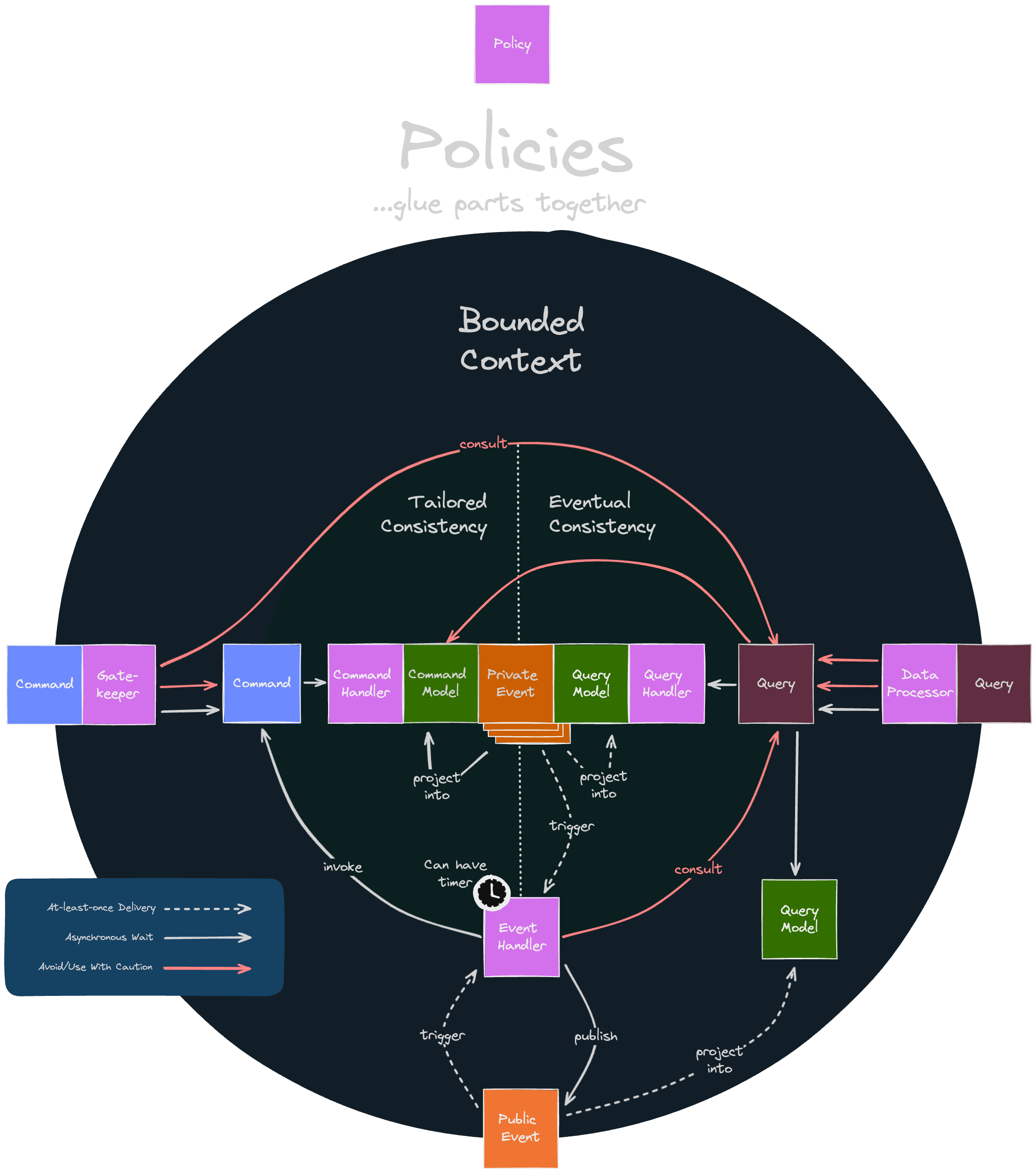

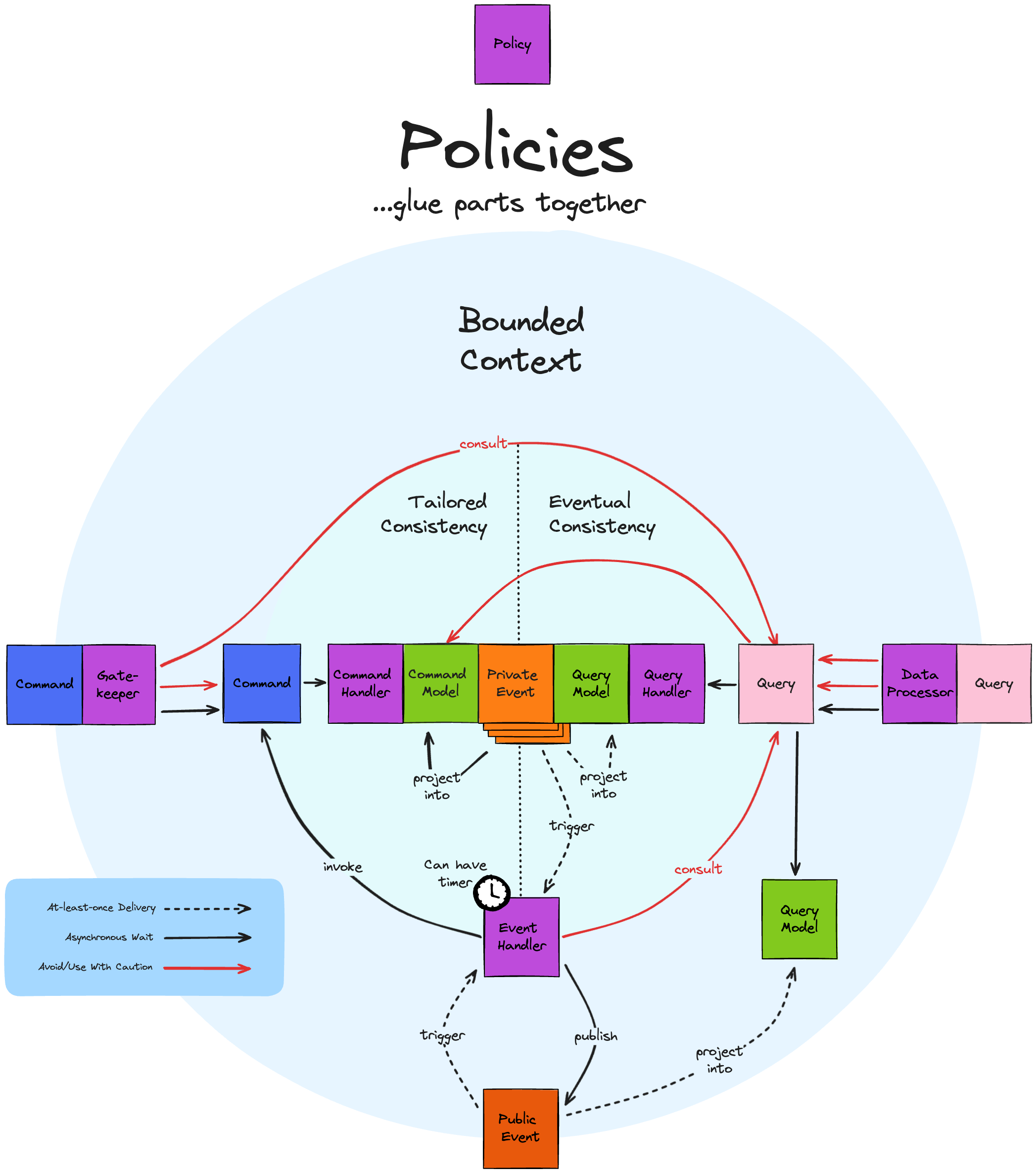

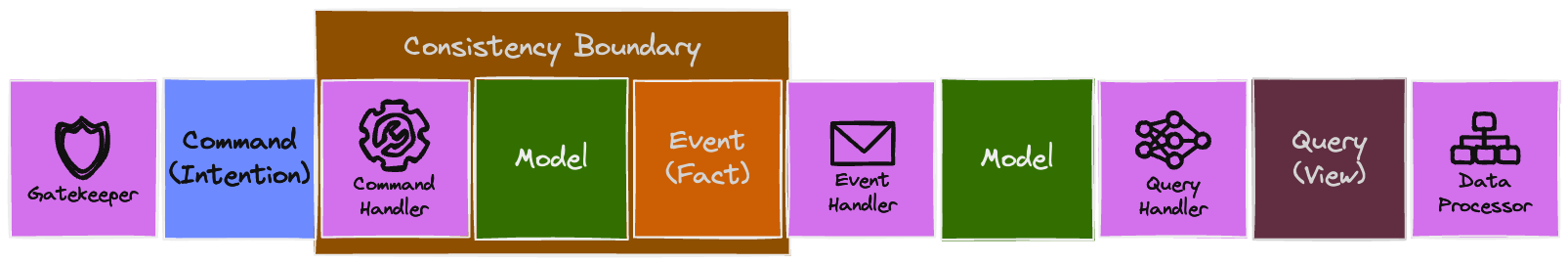

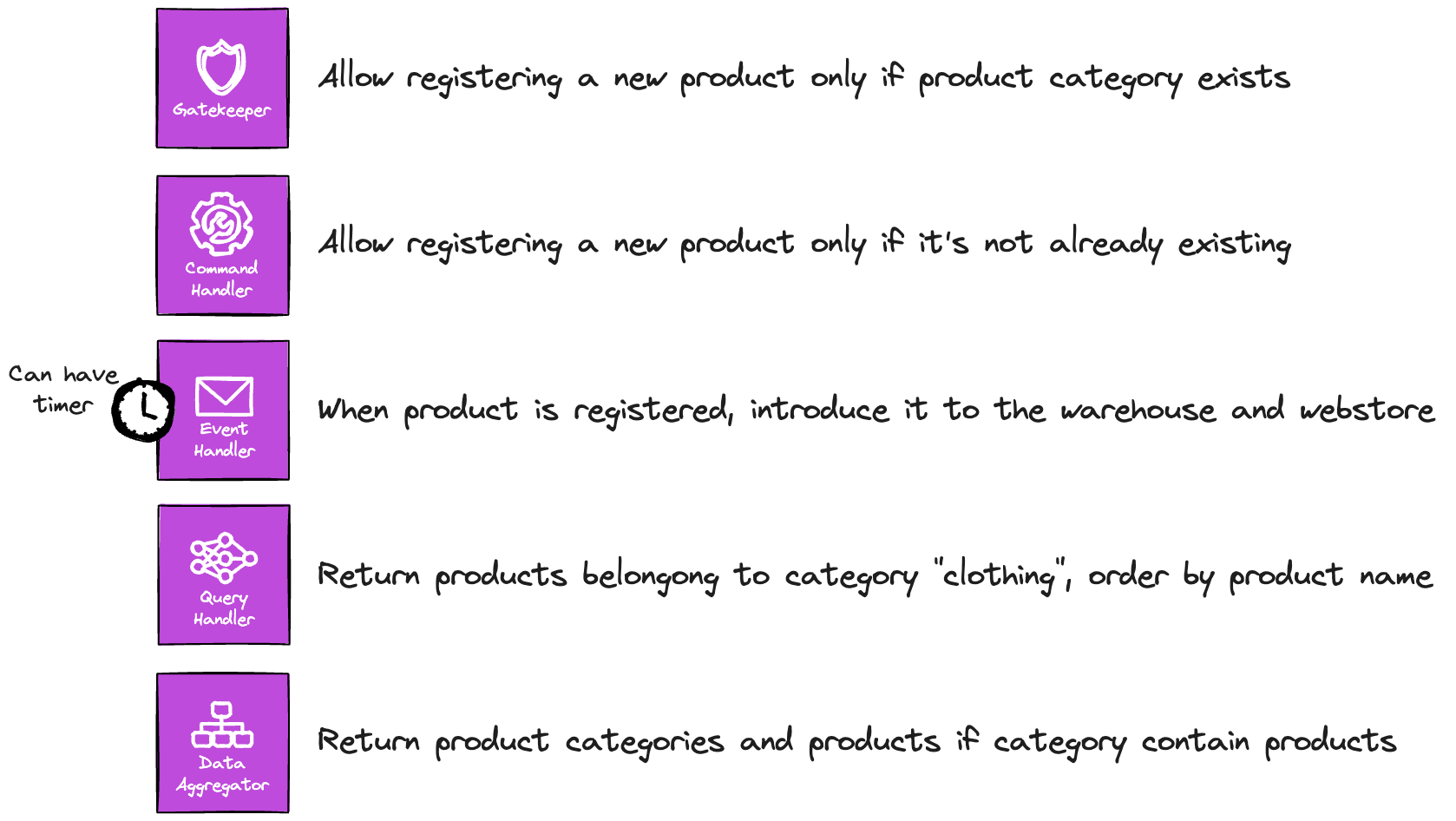

Policies
| Component | Purpose | Key Responsibility | Sync/Async | Consistency Level |
|---|---|---|---|---|
| Gatekeeper | Validates commands before dispatch | Enforces business rules with best available state across consistency boundaries | Sync | Best effort, may be stale |
| Command Handler | Executes commands against models | Applies state changes safely within consistency boundaries | Sync | Strong, authoritative |
| Event Handler | Reacts to domain events asynchronously | Updates models, triggers workflows, reconciles | Async | Eventual |
| Query Handler | Serves read requests efficiently | Provides data from a single, read-optimized view | Sync | Eventually consistent |
| Data Processor | Maintains derived or aggregated models | Combines multiple sources into query-friendly views | Sync | Eventually consistent |

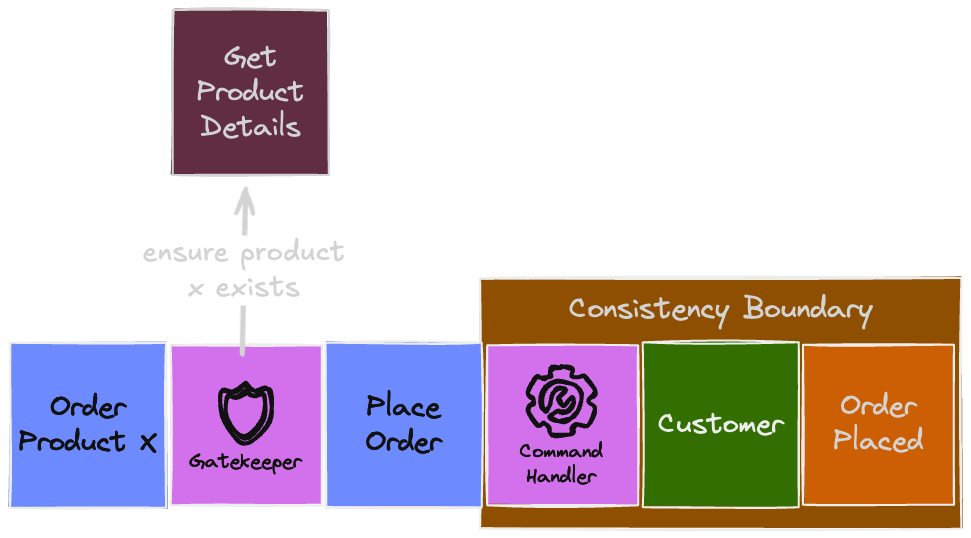

Gatekeeper
Context
Distributed systems inevitably span multiple nodes, regions or even continents. Because of this distribution, communication across components is never instantaneous. It is bounded by network latency and the speed of light.
The consequence is eventual consistency: state observed in one part of the system may lag behind state in another. When commands are received, they often require validation that involves fetching data across these consistency boundaries. This means the Gatekeeper may consult stale or incomplete models during validation.
Problem
How can we validate and execute commands safely in an environment where the data required for validation may not be fully up-to-date?
Forces
| Force | Description |
|---|---|
| Physics | Network latency and the speed of light make instantaneous global coordination impossible |
| Eventual consistency | Both commands and validation queries may see stale or partial data |
| Integrity | Business rules must still hold (for example orders cannot reference missing products) |
| Responsiveness | Over-synchronization increases latency and hurts availability |
| Practicality | Global transactions are too costly and fragile at scale |
Solution
Introduce a Gatekeeper that intercepts commands before dispatch. The Gatekeeper validates preconditions by consulting models. It acknowledges that data may be stale, so it enforces logical rules based on the best available view.
If checks fail, the command is rejected. If checks succeed, the command is passed on to the Command Handler for execution. For cases where distribution causes timing conflicts, combine the Gatekeeper with Event Handlers that reconcile state over time.
Implementation
- Place the Gatekeeper between incoming Command and the Command Handler
- Use models to validate logical preconditions
- Keep Gatekeepers lightweight and avoid introducing side effects
- Reject or forward commands based on validation outcome
- Pair with Event Handlers for long-term consistency guarantees

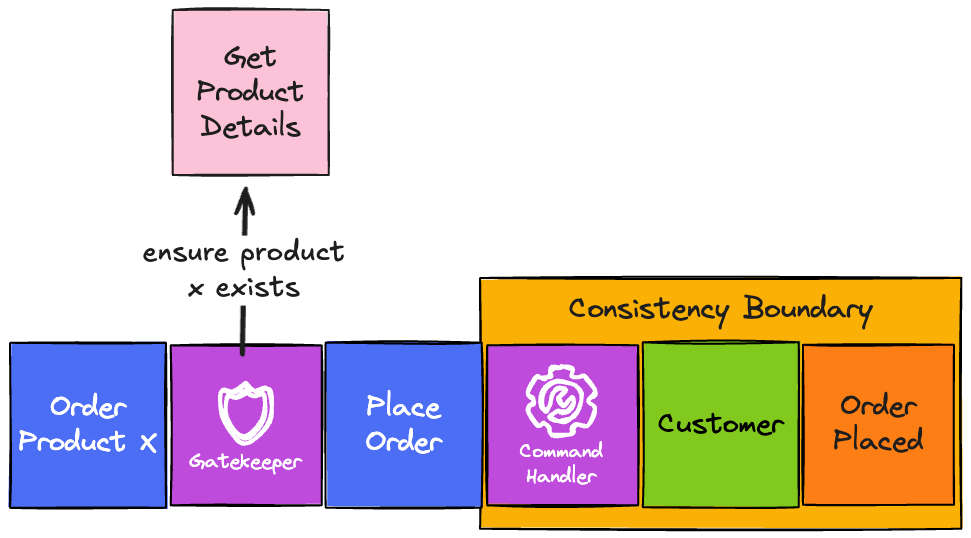

Example
- A customer places an order: the Gatekeeper verifies that the referenced product exists in the product model
- A product is about to be archived: the Gatekeeper checks the order model to see if open orders still reference it
- Race condition: A customer places an order for a product at the exact same moment that the product is being archived
- The Gatekeeper may validate against stale state and approve the order
- This race condition cannot be fully avoided due to distribution and asynchronous propagation
- Such conflicts are caught later by Event Handlers, which reconcile the system state (for example canceling the invalid order or compensating the customer)
Resulting Context
- The system remains available and fast because global synchronization is avoided
- Logical safety nets prevent most invalid commands from corrupting state
- Remaining inconsistencies are delegated to asynchronous reconciliation
Consequences
| Type | Description |
|---|---|
| ✅ | Prevents many invalid operations at command boundaries |
| ✅ | Keeps write-side execution simple by moving validation out |
| ⚠️ | Dependent on model freshness, stale data can cause false negatives or positives |
Related Patterns
- Event Handler: Ensures eventual reconciliation of state inconsistencies
- Command Handler: Executes commands only after Gatekeeper approval

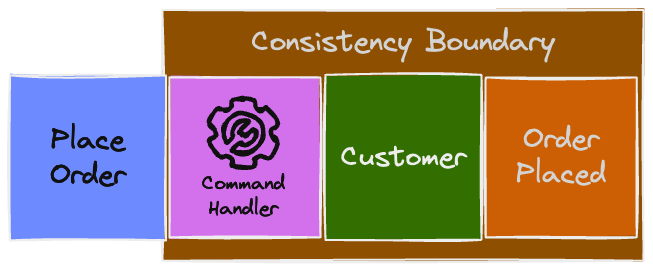

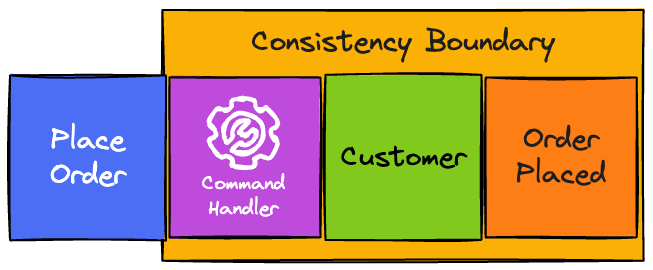

Command Handler
Context
Every distributed system must change state in response to incoming requests. These requests, modeled as commands, represent intent to perform an action (for example PlaceOrder).
Within a single consistency boundary, state changes can be validated and applied synchronously. Distribution does not eliminate the need for authoritative state, it just means that such validation is localized to where the model lives.
Problem
How can we process commands safely against a mutable model, ensuring correctness in the presence of concurrent modifications?
Forces
| Force | Description |
|---|---|
| Concurrency | Multiple commands may target the same state simultaneously |
| Integrity | Domain invariants must hold (for example inventory cannot go negative) |
| Performance | Users expect responsive command execution |
| Isolation | We want to validate against authoritative state without requiring consensus |
Solution
A Command Handler is responsible for executing a command against an authoritative model. It validates the command synchronously against that model and applies state changes if valid.
Concurrency is handled using optimistic concurrency control (checking versions and rejecting on conflict) or pessimistic locking (blocking until safe).
Implementation
- Map each command to a corresponding Command Handler
- Load the relevant model
- Validate command preconditions against current state
- Apply the state change and persist it
- Return success or failure
Example
- PlaceOrder: Load the customer model, check available balance, record the order if sufficient funds exist
Resulting Context
- Each command is validated against authoritative state
- Concurrent modifications are either serialized or rejected
- Integrity is preserved inside the consistency boundary of the model
Consequences
| Type | Description |
|---|---|
| ✅ | Ensures correctness of state changes |
| ✅ | Provides immediate validation against authoritative data |
| ⚠️ | Does not protect against stale commands outside boundary |
Related Patterns
- Gatekeeper: Filters commands across boundaries before they reach the Command Handler
- Event Handler: Coordinates asynchronous reactions after command execution

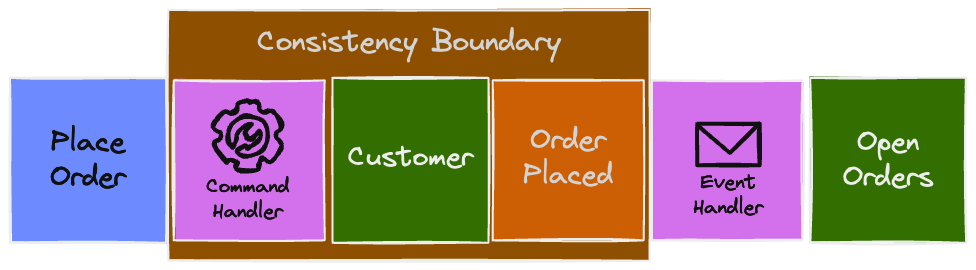

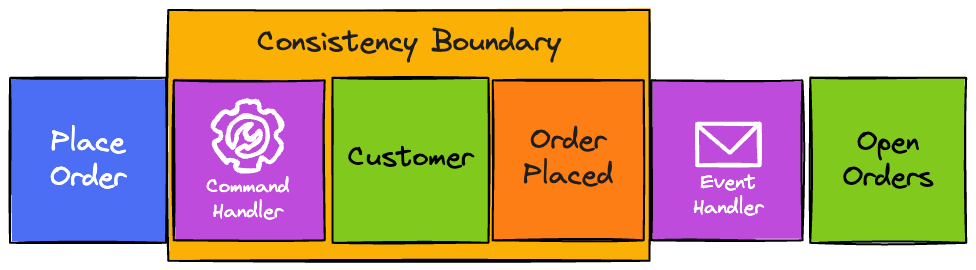

Event Handler
Context
In distributed systems, actions often produce consequences beyond the immediate consistency boundary. Commands executed in one place generate events, domain facts describing what has happened (for example OrderPlaced or ProductArchived). These facts must often be communicated to other parts of the system which may run on different nodes, services or geographies.
Because of this distribution, events cannot always be reacted to synchronously. Network latency, partitions and independent scaling force asynchronous handling. This distribution naturally results in eventual consistency between components.
Problem
How can we ensure that different parts of the system react appropriately to domain events, even though event delivery is asynchronous and queried state may be stale?
Forces
| Force | Description |
|---|---|
| Asynchrony | Event delivery has no global ordering guarantee |
| Resilience | Failures must not result in lost reactions |
| Idempotency | Events may be delivered more than once |
| Context | Reacting to an event often requires additional information gathered through models |
| Staleness | Queried state may lag due to eventual consistency |
Solution
Use Event Handlers to subscribe to domain events. An Event Handler:
- Consumes events as facts
- Optionally queries additional models to enrich its decision
- Triggers side effects such as updating models, starting workflows, notifying external systems or compensating for conflicts
Like Gatekeepers, Event Handlers operate with the best available view of state and must tolerate stale data. The key difference is when they act:
- Gatekeeper: Validates commands before execution
- Event Handler: Reacts to events after execution
Together, they form a two-stage defense: Gatekeepers prevent many invalid actions upfront while Event Handlers reconcile and extend the system after facts have been established.
Implementation
- Listen for domain events emitted by authoritative Command Handlers
- Handle events idempotently (safe to reprocess)
- Query models to gather supporting context
- Trigger appropriate side effects such as updating models, notifying services, initiating workflows or performing compensations
- Use retries and dead-letter queues for robustness
Example
- OrderPlaced event: The handler queries the customer model to decide whether to trigger a loyalty program workflow
- ProductArchived event: The handler queries the order model to find all active orders that still reference the product and cancels them
- Race condition resolution: If an order was accepted for a product being removed, the Event Handler compensates by canceling the order and notifying the customer
Resulting Context
- Domain events are propagated as immutable facts
- Other parts of the system respond to those facts asynchronously
- Business rules are enforced over time, using the best available state at the moment of reaction
Consequences
| Type | Description |
|---|---|
| ✅ | Ensures system-wide reactions to authoritative facts |
| ✅ | Supports long-running workflows and cross-boundary coordination |
| ⚠️ | Event Handlers may base decisions on stale query results |
| ⚠️ | Complexity of retries, ordering and compensation must be managed carefully |
Related Patterns
- Command Handler: Produces events as authoritative facts
- Gatekeeper: Prevents many invalid commands upfront, reducing cleanup burden
- Saga: A higher-level orchestration built on Event Handlers

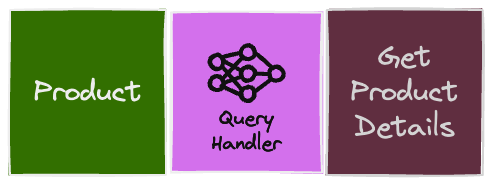

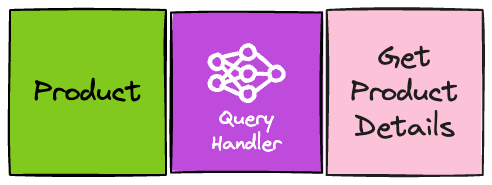

Query Handler
Context
Many systems need to respond to read-only requests (queries) that expect up-to-date or near real time data. These requests typically target a single view or model specifically built for reading.
Problem
How can the system efficiently serve read requests without introducing inconsistency or performance bottlenecks by relying on write-side or multi-view models?
Forces
| Force | Description |
|---|---|
| Freshness | Queries require reasonably current data but strict consistency may be relaxed |
| Performance | Reads must be fast, joins across many sources slow responses |
| Scalability | The view must handle large volumes of queries efficiently |
| Isolation | Query workload should not interfere with write workload |
Solution
Introduce a Query Handler that serves queries from a single, read-optimized view.
The view is maintained asynchronously and may lag slightly behind the write model but guarantees fast, consistent access within its scope.
Implementation
- Maintain read-optimized views (materialized views, read replicas, denormalized tables)
- Apply caching where appropriate
- Ensure each query retrieves data from one view only
- Optionally expose version or timestamp metadata to indicate view staleness
Example
- A product catalog service responds to
GET /products/{id}by reading from a denormalized product view - A customer profile API retrieves the latest known preferences from a projection without joining multiple sources
Resulting Context
- Reads are fast and predictable
- Query logic remains simple and well scoped
- Some staleness is tolerated in exchange for scalability and performance
Consequences
| Type | Description |
|---|---|
| ✅ | Efficient and scalable reads |
| ✅ | Clear separation of read vs write responsibilities |
| ⚠️ | View staleness can cause users to see outdated information |
Related Patterns
- Data Processor: Maintains derived models or multi-source projections
- Event Handler: Updates the single view consumed by the Query Handler

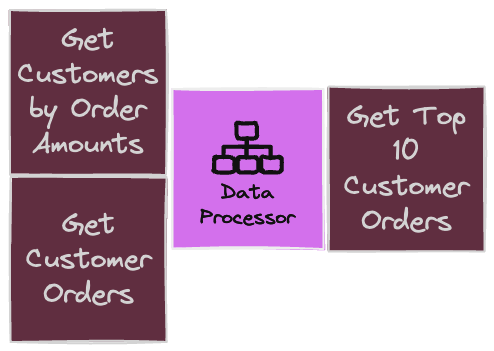

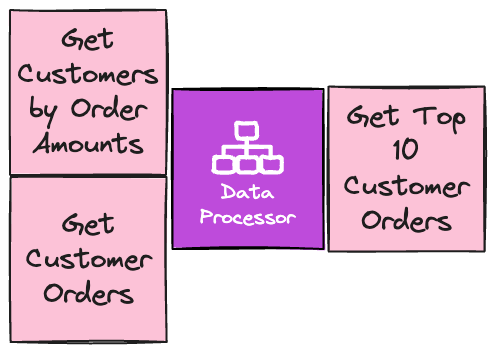

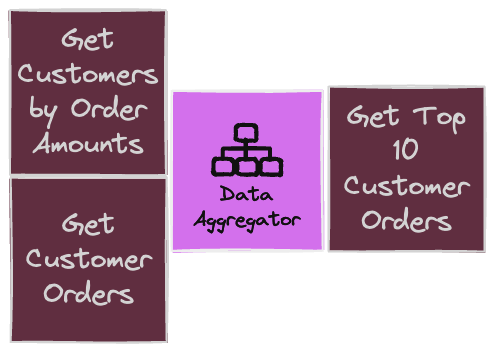

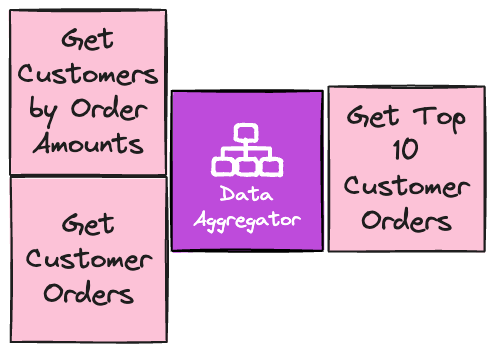

Data Processor
Context
Systems often require derived models or aggregated projections that combine data from multiple sources.
Problem
How can derived models be kept correct and reasonably fresh when they depend on multiple evolving sources with different consistency guarantees?
Forces
| Force | Description |
|---|---|
| Freshness vs Cost | More timely updates increase complexity and resource usage |
| Fault tolerance | Failures in any input stream must not corrupt derived models |
| Consistency boundaries | Data may span multiple bounded contexts with different guarantees |
| Maintainability | Transformation logic should be testable and evolvable |
Solution
Introduce a Data Processor that:
- Performs more than one query against two or more sources or views
- Joins or merges the results and computes derived fields as needed
- Returns the combined result to the caller or writes it to a derived model
Implementation
- Issue queries in parallel where possible
- Use timeouts and fallbacks for slower or unavailable sources
- Prefer a consistent read point when available to reduce skew
- Keep joins explicit and bounded, avoid unbounded fan out
- Cache small reference data that is reused across queries
- Handle partial failures deterministically and surface what is stale
- Persist the combined result only when a reusable derived view is needed
Example
- A “Customer 360” view merges data from billing, orders and support systems
- A recommendation list built from user activity and product data
Resulting Context
- Applications can issue one logical request instead of managing multiple queries themselves
- Cross-source data can be combined into a single, coherent response
- Query complexity is centralized in the Data Processor, not spread across clients
- Overall system remains simpler because consumers depend on one result rather than many sources
Consequences
| Type | Description |
|---|---|
| ✅ | Enables complex domain-specific models and analytics |
| ✅ | Offloads heavy queries from transactional stores |
| ⚠️ | Additional latency from multiple round trips |
| ⚠️ | Inputs may have different freshness which can surface as inconsistencies |
Related Patterns
- Query Handler: Reads from derived views maintained by the Data Processor

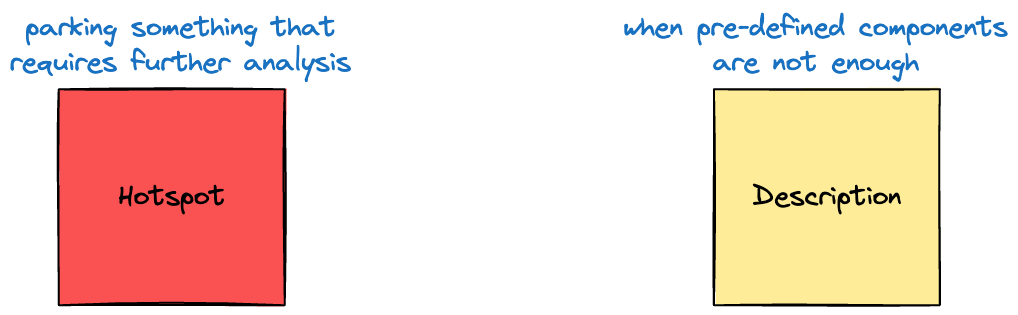

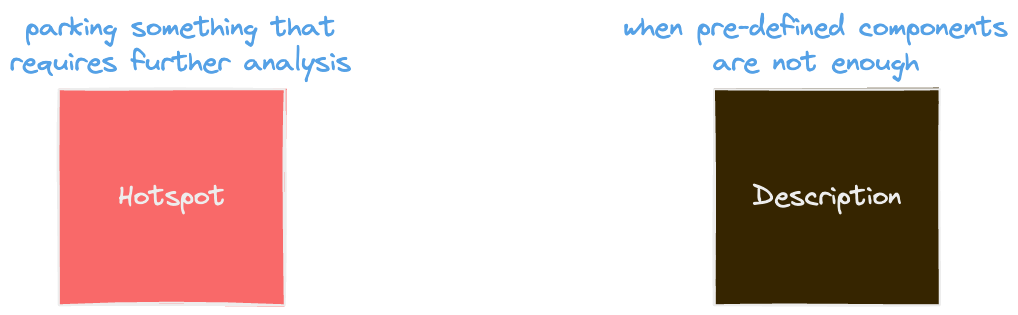

Hotspots and Descriptions

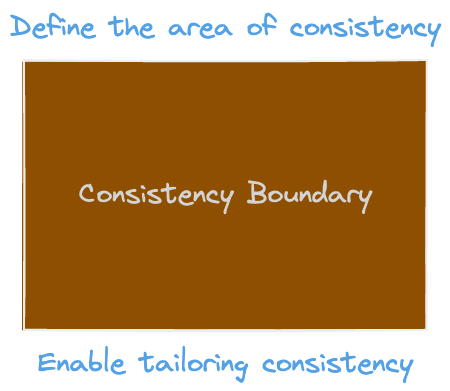

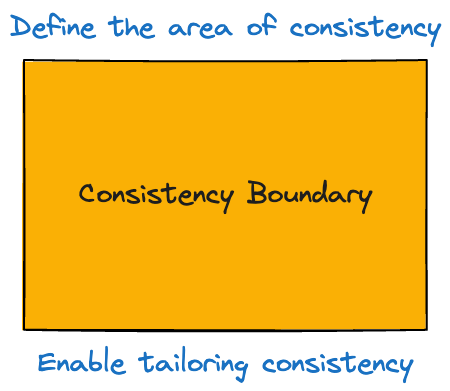

Consistency Boundaries
Interestingly, even if this is done as a last step in the Scalable Modeling, this often requires business-driven decisions. For instance, while financial transactions demand strict consistency, less critical processes like reporting can tolerate delays.
Dynamic Consistency Boundaries (DCB) is an emerging term, and as we leave defining the consistency boundaries as a last step we make Scalable Modeling compatible with DCBs.
